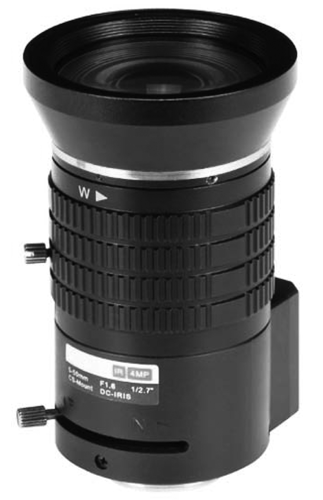

MEGAPIXEL LENS
PLZ1140-D
4 MegaPixel 5-50mm Lens
Specifications
| Model | PLZ1140-D | |||
|---|---|---|---|---|
| Parameter | ||||
| Image format | 1/2.7" | |||
| Focal length | 5-50mm | |||
| Aperture | F1.6 | |||
| Field Angle | 1/2.7 | W : 70 ° (D) x 50 °(H) x 37.5 °(V) ~ T : 7 °(D) x 5.6 °(H) x 4.2 °(V)
W : 52 °(D) x 41.6 °(H) x 31.2 °(V) ~ T : 6.4 °(D) x 5.1 °(H) x 3.8 °(V) |
||
| 1/3" | ||||
| M.O.D. | 1m | |||
| TV Distortion | <-15.1% | |||
| IR Correction | Yes | |||
| Lens Control | Focus | Manual
Manual DC-Iris |
||
| Zoom | ||||
| Iris | ||||
| Mount | CS | |||
| Dimension | Φ47x85.9mm | |||
| Weight | 195g | |||
| Operating temperature | -30 ℃ ~ +70 ℃ | |||
